Precision engineering hidden in an outstanding metallic finish.

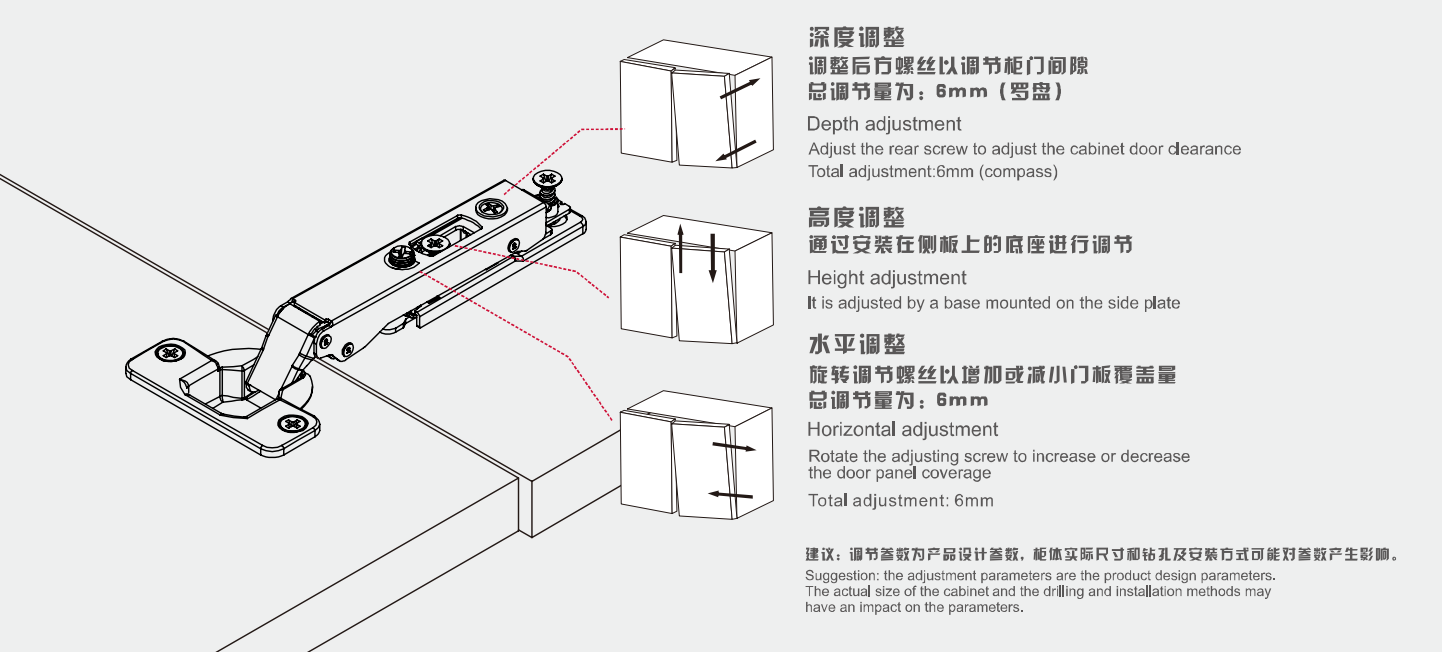

Engineered for multi-dimensional adjustment, heavy-duty support,
and a lifetime of silent, corrosion-resistant movement.
Category: Hinges
Cup Diameter
35mmCup Depth
11mmMax.Opening Angle
105ºDoor Drilling Distance(k)
3-7mmThickness OfDoor(t)
16-22mmMaterial For Cup
lron with black agate platingMaterial For Arm
lron with black agate platingMaterial For Mounting Plate
lron with black agate plating| Technical Attribute | Specification |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Max. Opening Angle | 105º |
| Door Drilling Distance (k) | 3-7mm |
| Thickness Of Door (t) | 16-22mm |
| Material For Cup | Iron with black agate plating |
| Material For Arm | Iron with black agate plating |
| Material For Mounting Plate | Iron with black agate plating |
GM01BC
