Precision engineering hidden in an outstanding metallic finish.

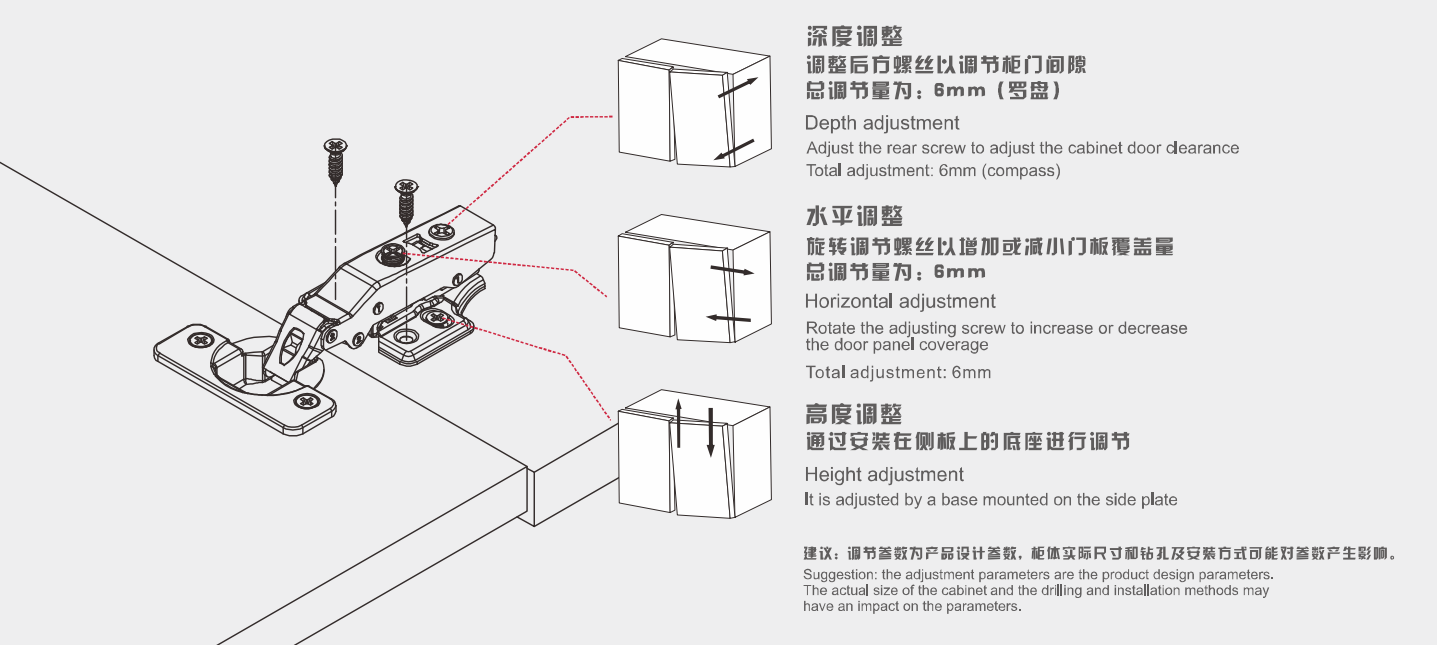

Engineered for multi-dimensional adjustment, heavy-duty support,
and a lifetime of silent, corrosion-resistant movement.
Category: Hinges
Cup Diameter
35 mmCup Depth
11.4 mmMax.Opening Angle
105ºDoor Drilling Distance(k)
3-7 mmThickness OfDoor(t)
16-22 mmMaterial For Cup
Iron With Nickel PlatingMaterial For Arm
Iron With Nickel PlatingMaterial For Mounting Plate
Iron With Nickel Plating| Technical Attribute | Specification |
| Cup diameter | 35 mm |
| Cup depth | 11.4 mm |
| Max. opening angle | 105° |
| Door drilling distance (k) | 3-7 mm |
| Thickness of door (t) | 16-22 mm |
| Material for cup | Iron with nickel plating |
| Material for arm | Iron with nickel plating |
| Material for mounting plate | Iron with nickel plating |
GS09B
