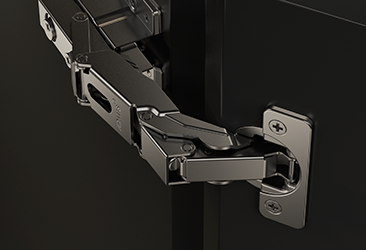

Precision engineering hidden in an outstanding metallic finish.
Engineered for multi-dimensional adjustment, heavy-duty support,
and a lifetime of silent, corrosion-resistant movement.
Category: Hinges
Cup Diameter
35mmCup Depth
11.4mmMax.Opening Angle
165ºDoor Drilling Distance(k)
3-7mmThickness OfDoor(t)
16-26mmMaterial For Cup
Iron With Nickel PlatingMaterial For Arm
Iron With Nickel PlatingMaterial For Mounting Plate
Iron With Nickel Plating
ADAMS delivers a complete hardware system solution built on precision engineering and advanced manufacturing, featuring a perfect motion experience with smooth, stable, and silent opening & closing, a high-durability design tested up to 50,000 cycles for long-term reliability, an integrated system approach with unified solutions across hinges, slides, and lift systems, easy installation & adjustment with a user-friendly design for efficient assembly, and international standard performance exceeding global quality benchmarks.
standard thick door panels
begonia angle cabinet design
Enhanced load-bearing capacity, wider opening angle, and soft buffer at small closing angle for smoother, easier closing.
| MATERIAL (ARM/CUP/BASE) | Cold-rolled Steel / Hardened SS / Zinc Alloy |
|---|---|
| FINISH OPTIONS | Nickel Plated / Matte Black Powder / Gunmetal |
| LOAD CAPACITY | 7.5kg per pair (standard cabinet height) |
| OPENING ANGLE | 105 Degrees |
| DOOR THICKNESS | 16mm - 22mm |
| CUP SIZE | 35mm Diameter / 11.5mm Depth |

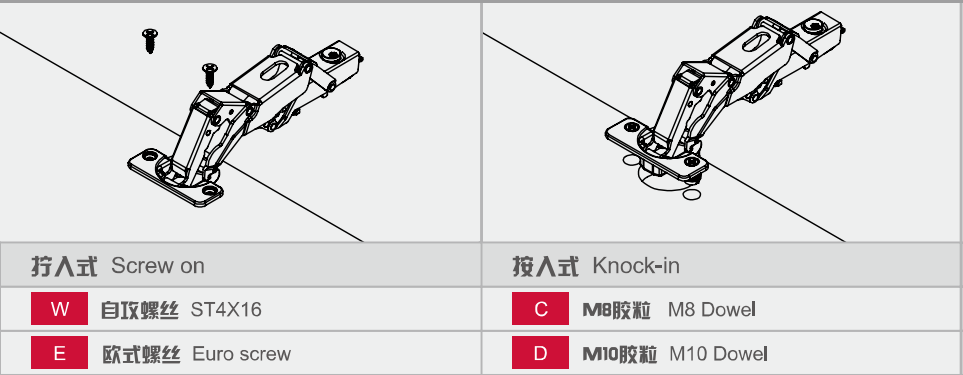

| MOUNTING SCREWS | φ3.5 x 15mm (Included) |
ADS165B
Yes, we offer options equipped with our integrated high-performance hydraulic damping system. It ensures that even wide, heavy doors close with a gentle, silent whisper, preventing the "slamming" noise and protecting the overall cabinet structure.
Excellent. ADAMS Hardware manufactures this series using advanced automated plating lines. Every hinge undergoes a rigorous Salt Spray Test in our professional testing center to ensure high resistance against kitchen moisture, steam, and cleaning chemicals, preventing rust and ensuring life-long durability.
The Clip-on mechanism allows the door panel to be snapped onto or detached from the cabinet carcass with a simple click, entirely tool-free. It cuts on-site assembly and maintenance time by up to 50%, while protecting the wooden cabinet from repeated screw damage during installation.

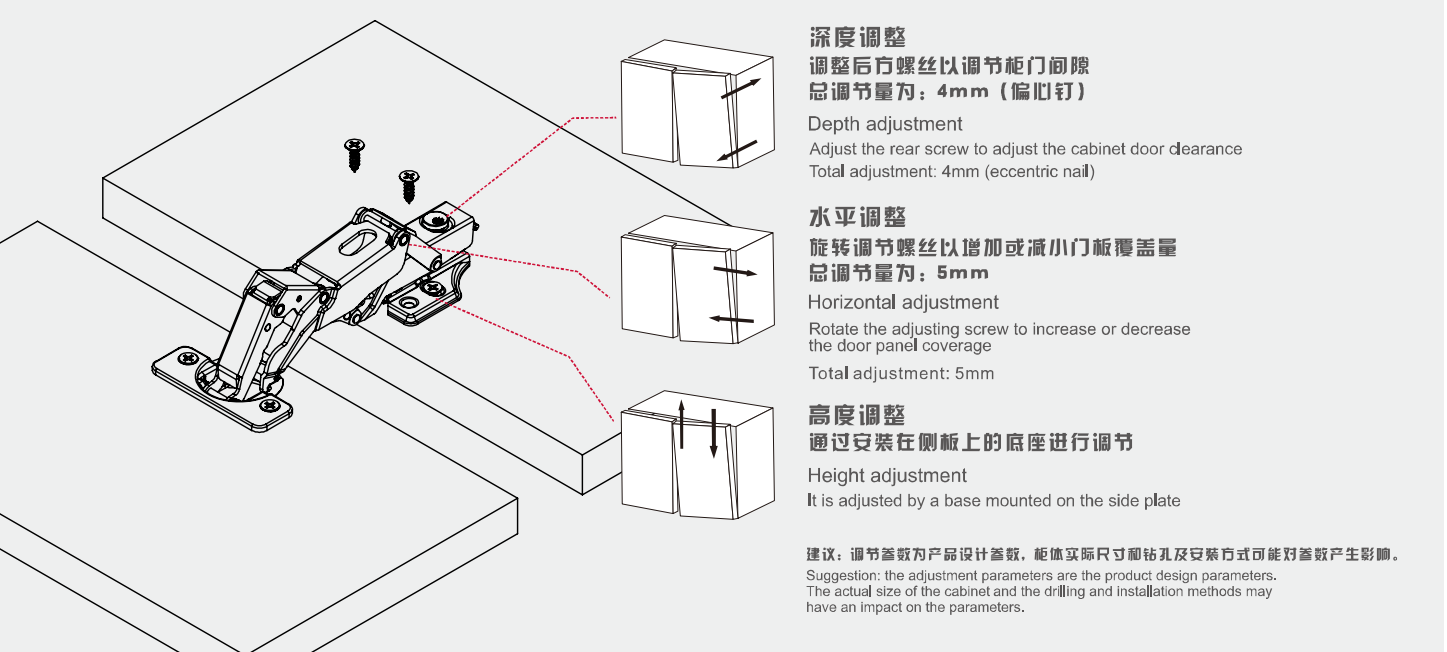

No specialized tools are required—a standard screwdriver is all you need. The "3D Adjustment" allows independent micro-adjustments in three directions: Height (up/down), Depth (front/back), and Lateral alignment (left/right). This makes it incredibly easy to align door panel gaps perfectly on-site.
Yes. Inheriting ADAMS’s 2026 multi-gauge adaptability, the ADS165B is engineered to support door panel thicknesses from 16mm up to 32mm. Its specialized kinematic movement ensures that even ultra-thick luxury door panels will not collide with the cabinet frame or adjacent doors when opening.

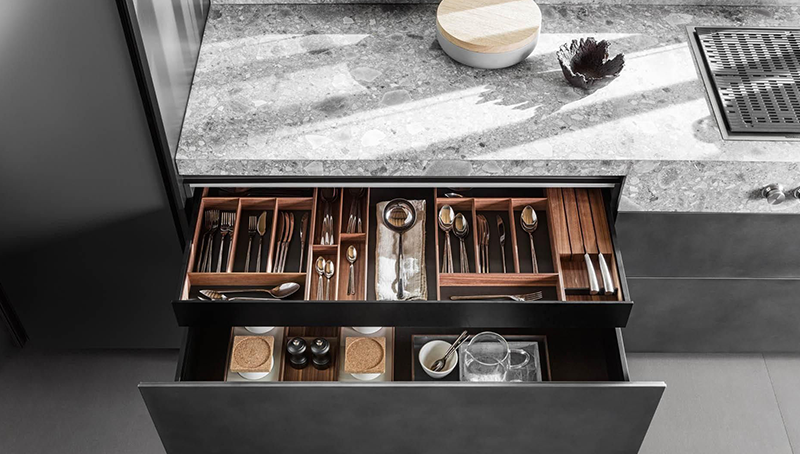

The ADS165B is ideal for internal pull-out drawers, larder pull-out units, and corner cabinets. Because it opens to 165°, the cabinet door fully retracts out of the way (Zero-Protrusion), allowing internal hardware and premium ADAMS Synchronous Slides to pull out smoothly without scratching or hitting the door panel.
Kitchen
All stainless steel, corrosion resistant, with silent buffer.
All stainless steel, corrosion resistant, with silent buffer.
Kitchen
All stainless steel, corrosion resistant, with silent buffer.
All stainless steel, corrosion resistant, with silent buffer.
Kitchen
All stainless steel, corrosion resistant, with silent buffer.
All stainless steel, corrosion resistant, with silent buffer.
Kitchen
All stainless steel, corrosion resistant, with silent buffer.
All stainless steel, corrosion resistant, with silent buffer.
Access our product catalogs, specifications and technical documents quickly. Free to download for your better reference.
