The combination of smooth sliding and strong structure.
Using precision pulleys and wear-resistant tracks,
Bringing a timeless, lightweight and silent silky walking experience.
Category: Ball Bearing Slide
Material
Cold Rolled SteelMax. loading capacity
35 KGDurability
50,000 CyclesFinish
Chrome Zinc, Black, Colorized ZincLength
8"-24"7 Types of LengthInstallation Reveal

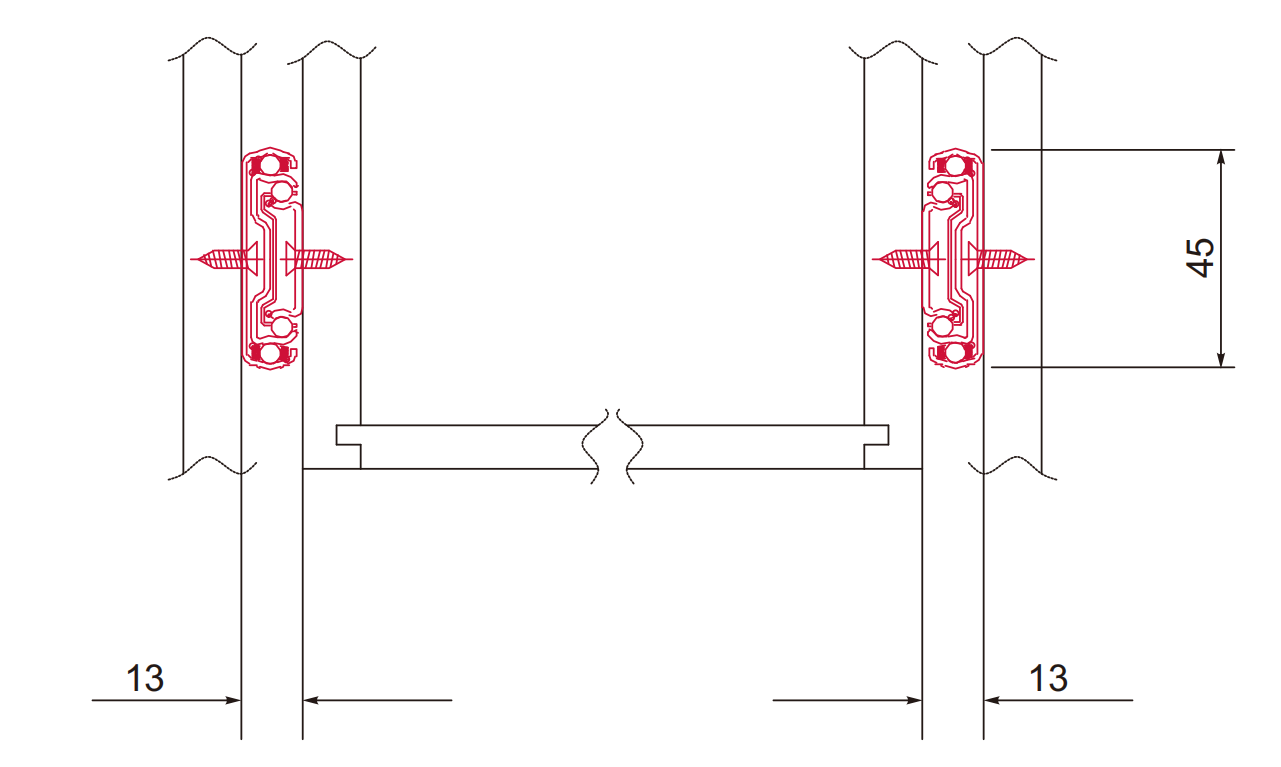

12.7mmSoft Closing Length
The soft closing starts when the slide is 45 mm before it is closed completely; silent movement2.7mm| Parameter | Description / Specification |
|---|---|
| Material | Cold Rolled Steel |
| Max. Loading Capacity | 35 kg |
| Durability | 50,000 Cycles |
| Finish | Chrome Zinc, Black, Colorized Zinc |
| Length | 12", 14", 16", 18", 20", 22", 24" (7 types of length) |
| Installation Reveal | 12.7 mm |
| Soft Closing Length | The soft closing starts when the slide is 45 mm before it is closed completely; silent movement |
PT4512DF
