PT4513A Soft Closing Full Extension Slide

PT4513A

Category: Ball Bearing Slide

  • Material

    Cold Rolled Steel
  • Max. loading capacity

    25 KG
  • Durability

    50,000 Cycles
  • Finish

    Chrome Zinc, Black, Colorized Zinc
  • Length

    10"-24"8 Types of Length
  • Installation Reveal

    12.7mm
  • Soft Closing Length

    The soft closing starts when the slide is 45 mm before it is closed completely; silent movement2.7mm
PT4513A Soft Closing Full Extension Slide

Technical Specifications

Parameter Description / Specification
Material Cold Rolled Steel
Max. Loading Capacity 25 kg
Durability 50,000 Cycles
Finish Chrome Zinc, Black, Colorized Zinc
Length 12", 14", 16", 18", 20", 22", 24" (8 types of length)
Installation Reveal 12.7 mm
Soft Closing Length The soft closing starts when the slide is 45 mm before it is closed completely; silent movement

PT4513A

Installation Guide

01

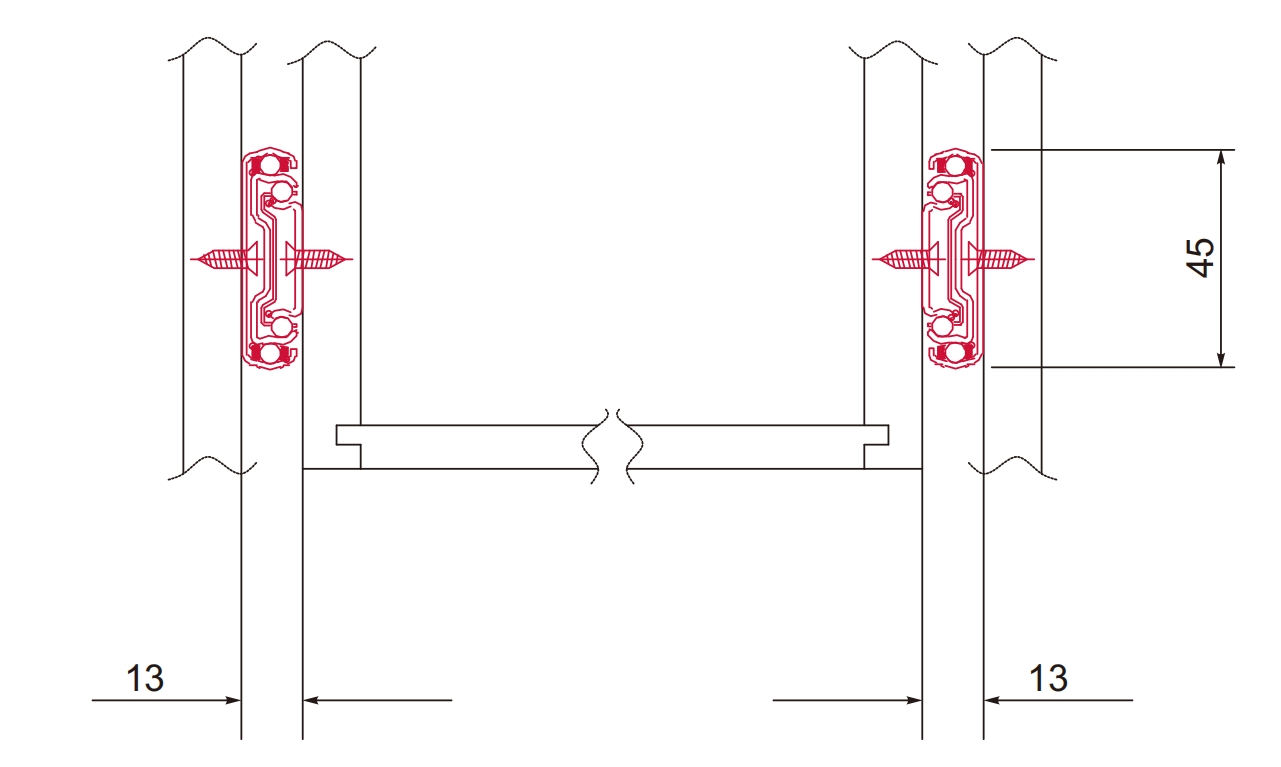

Slide Installation Drawing
