DH904 Extension Concealed Slide
DH904
Category: Concealed Slide
-
Material
zinc plating steel -
Max. loading capacity
25kg -
Durability
50,000 cycles -
Finish
zinc plating -
Length
10"-20" 6 types of length
Concealed Slide
The combination of smooth sliding and strong structure.
Using precision pulleys and wear-resistant tracks,
Bringing a timeless, lightweight and silent silky walking experience.
Technical Specifications
| Material | zinc plating steel |
| Max. loading capacity | 25kg |
| Durability | 50,000 cycles |
| Finish | zinc plating |
| Length | 10"-20" 6 types of length |
DH904
Installation Guide

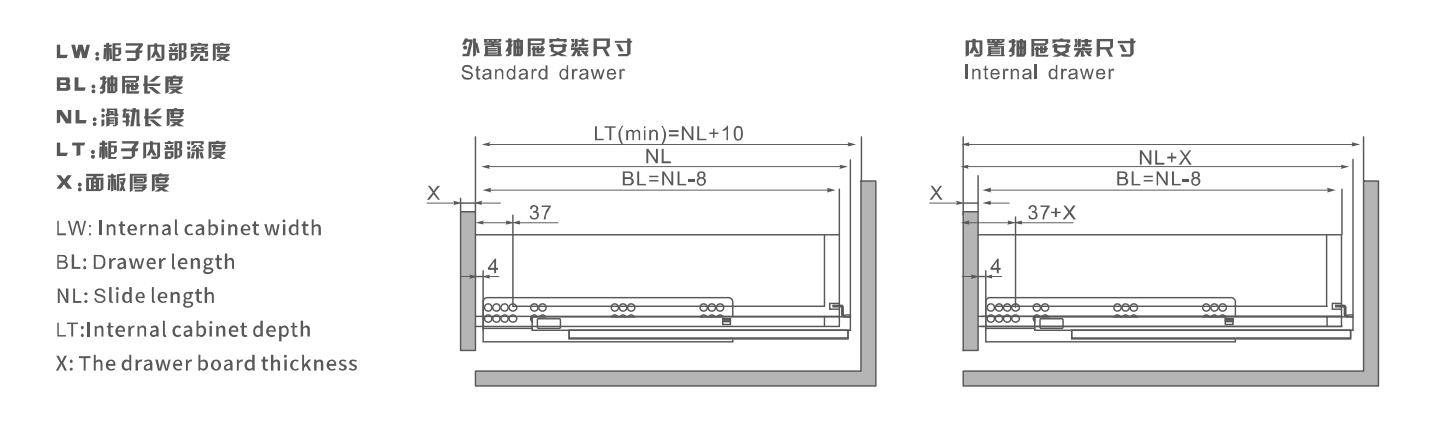

Slide Installation Drawing

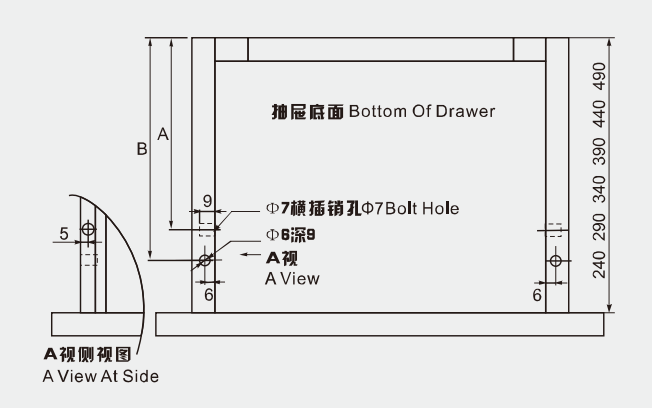

Installation Technical Drawing

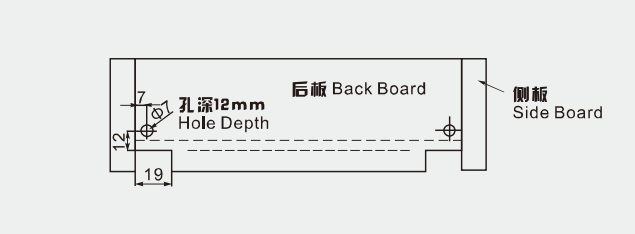

Installation Technical Drawing

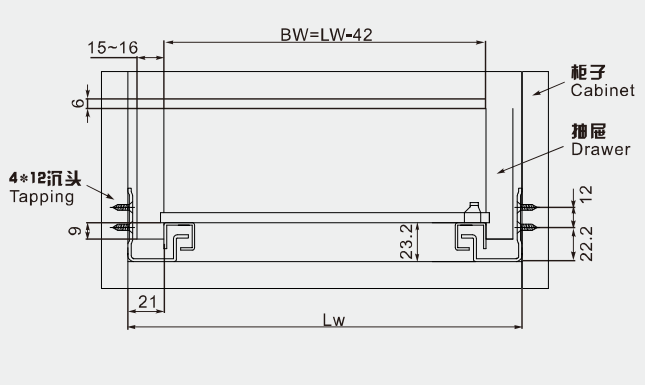

Installation Technical Drawing
